Critical Making 1: Finding Your Superpower Through Digital and Physical Making

Critical Making 1 is a first semester project-based studio course that provides a foundation in the creative process of making with new and emerging digital and physical technologies responsible for building the products and services shaping the world we live in.

In this course students work towards becoming fluent with digital and physical tools and technologies supporting their creative visions for new products and services. This includes working with modern web technologies (languages, frameworks, API’s) to produce functional prototypes, surveying Computer-Aided Design (CAD) tools for 3D modeling and visualization and leveraging digital fabrication tools (3D Printing, Laser Cutting, CNC Milling) to rapidly produce physical objects and prototypes.

The course will culminate in a final project leveraging the various digital and physical tools, techniques, skills, and knowledge gained throughout the semester. Project examples include web-based applications, connected experiences, smart devices, everyday / enchanted / functional objects, media-based installations, and product-based experiences.

Day and Time:
APRD-5005-003 / AM Section - Monday, 9:30 am - 12:30 pm
APRD-5005-001 / PM Section - Monday, 1:30 pm - 4:30 pm

Location:
We have adopted a hybrid (remote/in-person) class structure this semester due to COVID-19. This means anyone can participate in person or virtually over Zoom anytime. The class schedule will indicate when class is to be held in person at the Studio or virtually over Zoom. The following Zoom link is to be used for all class sessions. The required password is provided in Slack.

>> Zoom Meeting (Password Required) <<

Instructor:
RJ Duran
rj.duran@colorado.edu
Slack: @rjduran. #cmstudio on cmcistudio.slack.com
Office hours by appointment. Feel free to reach out to me via slack or email.

Syllabus:
This website is a real-time version of the course syllabus. It is updated weekly throughout the semester. A static version can be downloaded here.

Course Resources

This website is the primary resource for all Critical Making Studio courses. Some of the resources used across the different courses are divided up into sections found on the left sidebar. Course specific resources will be found within the course schedule page specific to each course, also found on the left sidebar.

Do I need to know all of these tools? No! Think of these resources as maps containing many possible tools that could help you accomplish your work and from which you can choose some to learn and work with. There are pros and cons to any tool and all have a set of functionalities and a purpose. As with any tool and any kind of personal creative process you are free to choose anything that works for you.

In addition to the tools found here in the digital space, you have access to physical tools for building anything you can imagine here at the studio, on campus at the Idea Forge, or in the community at BLDG61.

IMPORTANT: In this time of COVID-19, be sure to investigate any policies and regulations for all campus based or non-CU based resources before using them. Be safe.

Our Studios

CMCI Studio facilities include the large main room (West Studio) and adjacent smaller room (North Studio). Both rooms contain different functionalities for developing projects at varying scales and for varying audiences. Read through the Studio Handbook for learning about each room and accessing the various tools and capabilities we have on site.

CMCI Equipment Resources

CMCI has a large collection of media production equipment for students to use. The Armory Vault and ENVD Checkout reservation systems have many items for general purpose use. With each system there are conditions that must be met. Visit each page to learn more. Learn more about all the on campus resources available at https://www.colorado.edu/facilities/cmci-equipment/.

Idea Forge

The Idea Forge is an on-campus design and fabrication facility open to all students located in the Fleming Building (near the Wolf Law Building at Broadway & Baseline Rd). In this course we will be making use of the tools and resources available to build projects and develop skills. Learn more at https://www.colorado.edu/ideaforge/.

BLDG61: Boulder Library Makerspace

BLDG 61 is a free community workshop that provides maker education and technology to the public in a creative and inclusive environment. They are located nearby, just down the street from our studio. They offer a variety of free workshops and access to tools and knowledge within the larger Boulder community. I highly recommend becoming familiar with their space. Learn more at https://boulderlibrary.org/bldg61/.

Course Workload

  • The CM1 is a 3 credit hour course. You should expect to dedicate at least 2-3 hours per credit hour. This translates into a 6-9 hours per week. Consider 6 hours a minimum expectation for one studio course and plan accordingly with your other studio courses.
  • Assignments for the course consist of weekly blog posts demonstrating project-based and process oriented research and explorations in making. Assignment parameters will be based on the topic of the week and "due" the following week by the start of class time. Refer to the Course Deliverables section for more information.
  • The course is organized into weekly meetings consisting of instructor led project-driven topics organized as workshops and studio work sessions. It is expected that all students are active participants in each session.

Course Deliverables

CM1 is a project based course and largely driven by student research and interests. As such, each deliverable is expected to vary based on the project parameters and requirements. The following outlines the general criteria for course deliverables throughout the semester.

Assignments

  • Assignments are given weekly and need to be submitted as a blog post published to your Critical Making blog. A minimum of 1 blog post per week is the expectation.
  • Medium is widely used in other studio classes but any blogging platform may be used.
  • Posts are to be submitted via slack #cmstudio by the specified due date each week.
  • It is recommended that a post includes a variety of media and content to support the subject matter. For example: text, images, video, graphics, photos, mockups, screen captures, tutorials, 3d model viewers (sketchfab), sketches, code, gifs, references, etc. Anything that is required to effectively communicate the details of a project, process, prototype, or idea.
  • The subject matter is in response to the topics of the week. Ideally, it falls in line with your interests, research area, project, creative process, etc. For example, you might consider doing a series of tutorials on a topic that interests you or a process/workflow you are currently exploring through the course.
  • Posts should be written to the best of your abilities and for a public audience. The post and any accompanying visual content (images, video) may be shared on social media.

Final Project

Course Themes

  • Building Creative Habits and Practices
  • Emerging Tech
  • Rapid Prototyping
  • Product Development
  • Materials
  • Digital Fabrication
  • Interactive and Immersive Digital / Physical Experiences
  • Parametric Modeling and Design
  • Visualization / Rendering
  • Deconstructing Problems and Solutions
  • Analyzing Systems of Logic

Phase 1: Make Everyday

Week 1: Overview

Aug 28 (Friday) | Location: In Person + Zoom Meeting

Processing Workshop

We will go through a process of creating a simple poster sized 24x36 in using the Processing IDE.

  1. Download and Install Processing
  2. Sketch (Instructions on slides)

Resources

Finding Inspiration

Where do you find inspiration? Here are a few I frequent.

Assignment 0: Setup a "maker" blog

Setup a dedicated blog to document your Critical Making experience.

What if I already have a website/blog? Great! Just make sure you tag or categorize your posts with "Critical Making 1" so they are easy to locate.

If you do not yet have a blog or wish to setup a dedicated site for this course, you have a plethora of options to choose from. Feel free to use whatever works for you to submit your work in blog post format. Many STCM students choose to use Medium because it's used to submit posts for RE Studio.

Examples by previous students:
Clayton Kenny (C11), Yvonne Danyluck (C11), Dave Laskowski (C11), Aitana Rothfield (C11), Gia Almuaili (C11), Tess Stevens (C11),Karen McClellan (C10), Allison Speigel (C10), Jonas Escobedo (C10), Sarah Cohen (C10), Diamond Alexander (C10), Kelly Phillips (C10), Hanshu Zhou (C10), Sarah Safranski (C9), Jim Murphy (C9), Matt Isola (C9), Nikki Cavalier (C9), Nick Balderston (C9)

Examples of similar blogs:
Chikara Inamura (HTMAA 2014), Matt Keeter (HTMAA 2011), Christos Tzamos(HTMAA 2014), Zach Seibold (HTMAA 2014), Merav Gazit (HTMAA 2014), Dorota Orlof (FAB Academy 2018 Barcelona)

Assignment 1: Know thyself

Your first assignment consists of 2 parts:

Part 1: Make a map

Generate a map of some kind that communicates your journey to CMCI Studio. Such a map might be a timeline, visualization, info graphic, mind map, photographic series, video, written document, or any combination of these formats. Include your interests and pursuits in CMCI Studio.

Questions:

  • What led you to CMCI Studio?
  • What is your question?
  • Based on the survey, what do you feel strong in and what are you excited to learn more about through this course?
  • Where do you see yourself by the end of the program?
  • If you could design and build anything, what would it be?

Resources

Part 2: Things I Like & Dislike

Choose 3 things you like (or love) and 3 things you dislike (or hate) and describe what they mean to you and why. Possible choices might be products, objects, artifacts, or experiences. Be wary of pointing out behaviors in people or circumstances beyond your control or judgement. Focus on the tangible attributes that you can clearly articulate.

Questions:

  • What’s their story?
  • Who made them and why?
  • Why do or did they exist?
  • Why do you find them intriguing or despise them?

Deliverable:

Write and submit a blog post for Part 1 and Part 2 on your blog. Include any media in your post that supports your thoughts and ideas. Share a link to your post on Slack #cmstudio by Sept 7 (Labor Day).

Due: Sept 7

Week 2: Tools for Development

Aug 31 | Location: Zoom Meeting

Today in class we will be working on setting up software and becoming familiar with some of the tools used for development.

  • Questions
  • Assignment #2 begins today
  • Class Format over Zoom
    • Break out rooms?
  • Setting up your development environment
    • What's that and why do we need it?
    • What does a development environment look like?
    • IDE's vs Text Editors, working code folder, Terminal, Node.js, NPM, Version Control.
    • The combination of all these tools is what I refer to as a "sandbox" or local development environment.
  • Terminal Workshop
  • Github Workshop
    • Version Control (aka a time machine for code/data)
    • Setup Github account
    • Create your first repo
    • Markdown
  • Demo: Local development environment
  • Code: The Hidden Language of Computer Hardware and Software
  • ASCII vs Binary Files
    • ASCII - Data for a human to read/write
    • Binary - Data for a computer to read/write

Development Environment

Lets get started by setting up a development environment. The most basic things you need for any web development tasks are a text editor and a browser like Chrome, Safari, or Firefox. Other tools such as the Terminal, Git, Github, and Node.js enable you to work with all sorts of libraries and frameworks, collaborate with others, and quickly prototype new ideas. All these tools come together under the idea of running a "local development server" or localhost on your machine. We will be setting up all these parts and will utilize them in different ways over the course of the semester.

If you are curious about the history of electronics, computers, computer science, programming, and the Internet, check out the Histories section. I strongly advise you to start getting familiar with the various histories and technological underpinnings of the technologies you use every day. Remember, it's also about building awareness and understanding about the systems that run our world. These resources are meant to work through at your own speed and as you begin to ask deeper questions about why something works and how something works.

I also highly recommend the book Code: The Hidden Language of Computer Hardware and Software by Charles Petzold. It is a foundational text on why computers are the way they are and how they work, beginning with code.

Text Editors

  • What is a text editor?
  • What is it's purpose?
  • How is it useful for development?

When it comes to web development or software development work, you need a text editor capable of working with ASCII data and rich in features supporting development tasks. My editor of choice is currently Visual Studio Code (VSCode).

Will Microsoft Word, Google Docs, or Pages work? No! These are word processing applications that deal primarily with binary data because in addition to the actual text information stored in a .doc file, it encapsulates data such as font and formatting. Don't use these editors for this kind of work. You will be sad.

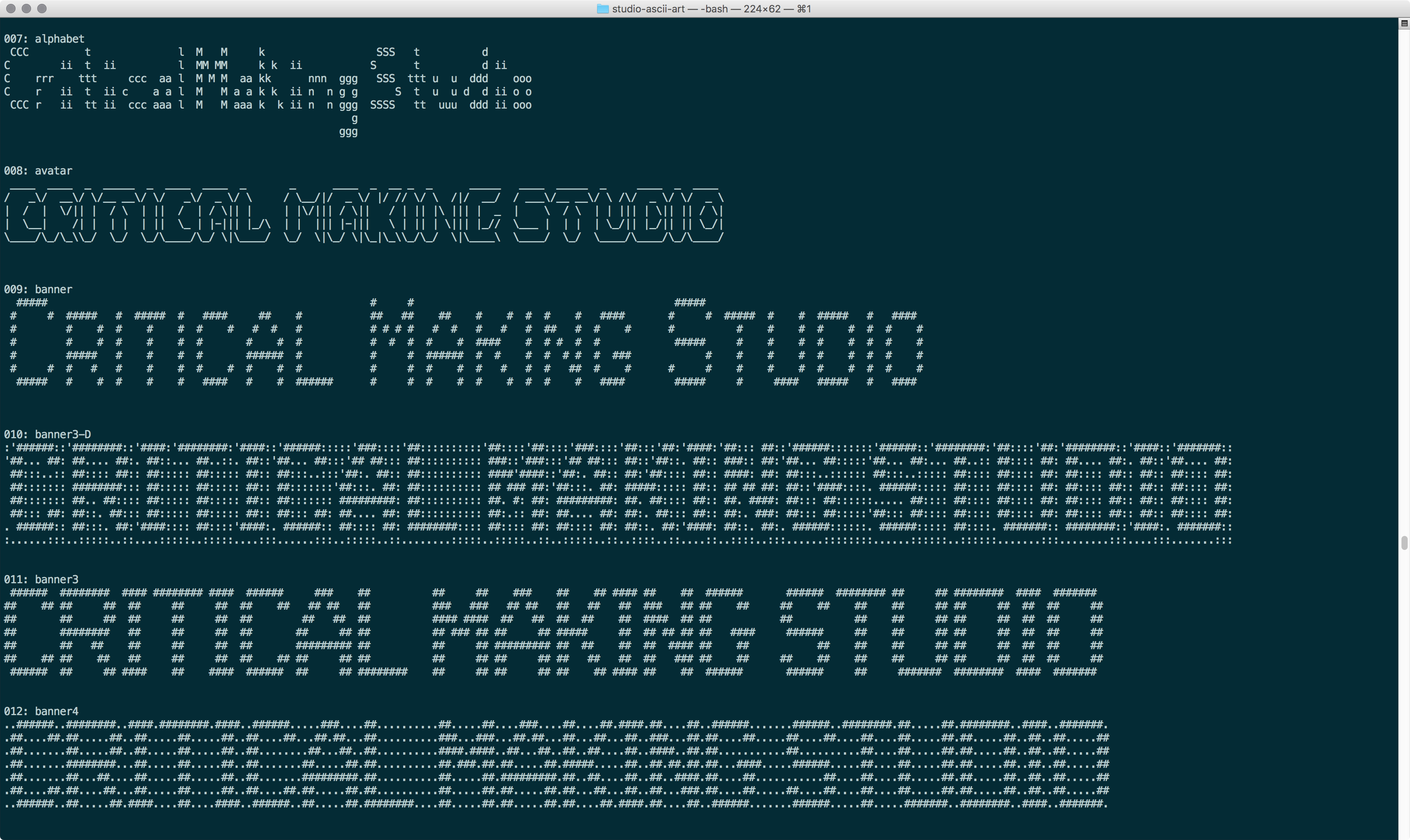

Terminal Workshop

  • What is the Terminal?
  • What is it's purpose?
  • How is it useful for development?

Goals:

  1. Get familiar with the terminal by creating and manipulating files and folders on your system.
  2. Set up git to be able to use version control to manage projects on Github.

Terminal 101

  • Location on MacOS: Applications/Utilities/Terminal.app
  • For the Windows users: Cmder is a Terminal emulator that works in a similar way to the mac terminal.
  • How to display hidden files on MacOS
  • Customize your Terminal in Terminal > Preferences. It helps to make the text larger on most screens.
  • Common commands: cd, ls, mkdir, rmdir, rm, mv, cp, pwd, man, touch. Think of all these commands as tiny applications that have no GUI. They are very old and have been around since the start of Unix based systems (Read this to learn more: Looking back at OS X's origins). Look at MacOS/Linux/Unix Command Line Cheat Sheet to see more information about common commands.
  • Working with directories and files:
    • cd <folder> - Goto into a folder
    • cd .. - Go up one level
    • cd ../<folder> - Go up one level (to parent folder) and into a child folder
    • cd ../.. - Go up two levels etc
    • Tab completion - When you start typing in a terminal you can hit tab to complete the command if the file or folder you are going to use is available. If you hit Tab twice, you will see the contents of a folder.
  • Getting out of or killing a process that is running in Terminal: ctrl + c

Install Git

You will likely not have Git installed on your machine by default. You will know if you have it or not when you type git into the Terminal. If you do have it installed you will see information about how to use it. If you don't, you will see the output "command not found".

You may be prompted to install XCode Developer Tools when installing git. Accept the install and proceed. You have two options to install git: Install the XCode Developer tools (easy way) or download the installer from git-scm.

After installing it the git command should work in the Terminal. This is essential to working with Github.

Resources

Github Workshop

Goals:

  1. Setup a Github account
  2. Create your first repository
  3. Publish some code to it

How to Use Github

  1. Sign up for a Github account. Choose a username wisely. You might just be "Internet famous" someday. (Stuck on choosing a username? Read this. A Tale of Github Usernames)
  2. Create a hello-world repo on Github. If you check the box to add a README file it will include a README.md file in the repo. This is the main information file shown when you goto the repo URL
  3. Clone your repo using the terminal. Doing this will download a copy of your repository onto your machine.
    • Clone Repo: git clone <repo url>. For Example, git clone git@github.com:rjduran/cm-sandbox.git. Note the URL and its use of "git" or "https". Use "https" to start. You need to go through the Github tutorial below in step #4 to connect to Github via SSH.
    • Open VSCode and add the cloned folder to the workspace
    • Make some changes to your README.md file using VSCode
    • Stage the changes: git add . or git add README.md
    • Commit the changes: git commit -m "my message describing changes"
    • Push the changes: git push
    • You will be asked for your username and password when attempting to push changes to your repo at this stage.
    • Once the changes are uploaded you will see the changes on the Github page for the repo. Yay! Good times! Success!
  4. Pro tip: After setting up your Github account, read through Connecting to Github with SSH to setup your system to connect securely to Github and not require you to enter your username and password credentials each time you push changes.

Assignment 2: Everyday Project

Objective: Make something and capture a digital representation of it each day for the next 2 weeks. You should have at a minimum 14 objects.

Thoughts on how to accomplish this:

  • Choose any tool(s) at your disposal.
  • Choose any theme or topic.
  • Date Range: Monday Aug 31 to Monday Sept 14
  • Decide how you will document your project. For example, Instagram, blog post, a single image, a document, a Github repo commit, a video, etc. Consider how the result will travel digitally.
  • Refer to the projects and practices you observed from last week.

Questions:

  • What do you already make and want to make more of?
  • What new thing has peaked your interest and will you use to make something every day?

Deliverable:

Submit a blog post documenting your project process and outcome in Slack #cmstudio.

Due: Sept 14

Week 3: Labor Day

Sept 7

Labor Day, No Class

Phase 2: The Modern Web

In this phase we will talk about web development paradigms and practices and you will build your web development skills inside and outside of class. We will approach each topic with simplicity in mind and focus on understanding fundamental concepts. To build advanced skills with the tools we discuss you will need to dedicate time outside of class for further experimentation. We will approach topics in a hands-on workshop format so be prepared to dive in.

If you do have some web development experience coming into the program think about some new aspects of development you are curious about such as libraries, frameworks, responsiveness, interactivity, animations, Javascript, types of tech stacks, or just how you can improve your skills in what you know through practice.

The goal of this phase is to gain a sense of how you can utilize web technologies to solve problems.

Week 4: Intro to Web Development

Sept 14 | Location: Zoom Meeting

Discussion

The World Wide Web

  • What is the World Wide Web and what is its purpose?

    The purpose of building websites and web applications is to make an idea accessible to people.

  • While we won't look into the history of the Internet very much, it's still worth spending some time reading more about the innovations and contributions to the Internet as we know it today under the History of the Internet section.

The Industry

  • What do web developers do?
    • Collaborate, write code, evaluate new tools, solve technical problems, synthesize, make prototypes.
  • What do web developers need to know?
    • At a minimum the 3 web languages, HTML, CSS, and JS. Beyond this it really depends on the project or idea. Many choose to specialize in different kinds of tech stacks supporting front-end development, back-end development, or full-stack development. Learning how to learn and apply technical skills is your best asset.
  • How do you learn web development skills?
    • Make lots of web things to practice. Make lots of mistakes to learn. Pick up books on the subject. Watch tutorial videos on development topics. Read blogs like those below and try everything you read about. In this ever evolving field you are constantly learning new tools and workflows.

Stacks & Maps

These resources are for you to investigate the world of development. Think of them as maps to learning about different roles and technologies.

Web Languages Workshop | In Class, 45 mins

Webpages are constructed in 3 languages - HTML, CSS, and Javascript. Modern browsers will render pages built in these languages more or less the same depending on the viewport size and device orientation.

In the resources below you can find some learning pathways for building skills with these tools. Make time to read through the basics of all the languages and try things out. Most importantly, seek to apply the skills you are learning towards projects.

How does a web language relate to what a user sees?

  • HTML = Document Structure
  • CSS = Visual Language (Layout, Identity)
  • JS = Interactivity & Dynamics

What IS the composition of a webpage?

At a basic level all you need is a single index.html file with <html>...</html> and enclosing <body>...</body> tag to render a webpage. All the CSS and JS you may have can exist inside the same file embedded within <style>...</style> and <script>...</script> elements. It only becomes important to separate the 3 types of code when a project becomes too large to manage within a single file, which is very common. Best practices, modularity, and the need for regular maintenance have led developers and designers towards a current approach of establishing and using style guides or coding standards.

Exercise 1: Hello HTML

Goals:

  1. Understand how to make a basic HTML document using a text editor (VS Code)
  2. Understand how to structure a document for HTML, CSS, and JS
  3. Understand how to use the browser for viewing a page

Instructions:

  1. Make a new folder called "hello-world" for your project files. Pro Tip: Setup a dedicated code folder for all your code based projects. I use one called code inside my home directory (/Users/rjduran or ~/).
  2. Open VS Code and add the "hello-world" folder to your workspace.
  3. Using VS Code make a new file called index.html in your project folder.
  4. Open Chrome and open the index.html file. You should see a blank page. This is your document without any content.
  5. In your index.html file, add the html, head, and body tags into the document.
    • What are these tags used for?
  6. In your index.html file, add a few elements such as h1, h2, p, a, and img into the document body.
    • What are these tags used for?
  7. Toggle between Chrome and VS Code to see your changes rendered in the browser. CMD + R to reload the page in Chrome.

Exercise 2: Hello CSS

Goals:

  1. Understand how to add CSS to a HTML document (internal & external)
  2. Understand how to use CSS selectors - element, .class, #id
  3. Get familiar with how to use CSS properties

Instructions:

  1. Create a new file called style.css in your "hello-world" folder. We will use this in step 8.
  2. Create a <style>...</style> tag to insert css into. Which part of your document does this go into?
  3. Write your first selector to change the color of a h1 element from black to red. Notice that css allows plain english words used for color or hex values such as #FF0000. (What, hex values? How to Read Hex Color Codes)
  4. Reload the browser to see your changes.
  5. Now write a class selector called .title and apply it to the h2 elements. Give the color property a value of green or #00FF00. What happens when you reload the document?
  6. Now write an id selector called #space-cat and apply it to your img element.
  7. Lets give the cat pucture a solid border with a 5 pixel width and make it blue.
  8. Open your style.css file you created in step 1. We will be copying our css into that file now.
  9. Copy and paste the code contained within your <style>...</style> element into style.css file.
  10. In your index.html file, insert the link tag to specify the external css file. <link rel="stylesheet" href="style.css">. This tells the index file to use the css it finds there. What happens if you load a css file and have css in your index file? Which selectors are used?
  11. Reload in the browser to see changes.

Resources

BREAK - Take 10 min

Website Analysis Workshop | Breakout Rooms, 20 mins

Goals:

  1. Get familiar with the Elements tab in Chrome development tools
  2. Understand the general structure of a HTML document
  3. Understand how HTML and CSS create visual heirarchy and organization

Instructions:

  1. Choose one of the Bootstrap examples to inspect.
  2. Using the Chrome development tools, inspect the site. Look at the HTML elements and the overall structure of the page.
    • Chrome Developer Tools (Inspector for debugging). Access via: View > Developer > Developer Tools within Chrome.
    • What do you notice? Discuss with your group.
  3. Make a quick wireframe sketch on paper of the page you are inspecting.
    • Label the different parts of the page using common terminology (ie. header, sidebar, footer, post, etc) and HTML tags with opening and closing characters(<, >).
    • What do you notice? Discuss with your group.
  4. Identify 2-3 HTML tags and look up their meaning on W3 Schools HTML Element Reference. Share your findings with the group.
  5. Exit breakout room and discuss your findings.

Local Development Workshop | In Class, 30 mins

Goals:

  1. Setup a local development server aka Sandbox. We will follow the instructions under How to build a Sandbox.
  2. Get familiar with starting / stopping a local server in the terminal
  3. Understand the development workflow

Instructions:

  1. Once your live-server is setup, launch an instance and open the browser.
  2. Make an edit to your index.html file and view the changes in the browser.
  3. Try launching a second server from another terminal window. What happens?

Resources

Assignment 3: Ode to Things

Choose one (or more) every day object(s) in your life and make a simple website for it / them. You might consider the site as a container for a favored item or collection of things, a product to sell, or simply a site that pays tribute to the item or object and what it means to you in life. This idea was inspired by the website Ode to Things, which is an e-commerce store and curated collection of physical every day products.

Thoughts on how to accomplish this:

  • Build a webpage from scratch that makes use of HTML elements and CSS selectors.
  • Use necessary html elements that act as containers for different types of content and page heirarchy: text, images, video, etc.
  • Develop your webpage using a local development environment aka live-server.
  • When done, make a repository on Github for your project and commit the required index.html file and and any media files to it. I should be able to clone your project repo and run it in a localhost on my machine to see the same result without changing filenames or folders. Hint: The repo should look similar to the hello-world folder and files you created in class. It should also include a README.md file since you always include this text file with any Github repo you create.
  • Video: CM1 Assignment 3 Tip: Github, VSCode & Terminal Workflow
  • Advanced Option: If you are feeling comfortable with HTML and CSS, explore an aspect of HTML or CSS that is new to you or take the leap into Javascript or using a front-end framework.

Deliverable:

  1. A short 1-2 min video screen capture demonstrating your website running in a local development environment as setup in class. Be sure to briefly introduce yourself and your project, provide an overview of what you made and how it works. Embed the video into your blog post.

    Pro Tip: If you are new to screen capture tools, look into using Screencast-o-matic or the built in screen capture tools of MacOS (CMD + Shift + 5) to document your workflow. Create an account with Youtube and upload your video.

  2. Include a link to your Github repo for the code written.

  3. A brief writeup on your blog about your learning experience.

    • What hurdles did you encounter and how did you overcome them?
    • What worked and what didn't?
    • What new tools did you try?
    • How would you explain what you've done to someone that doesn't know anything about web development and the tools used?

Submit a link to your post on Slack #cmstudio by EOD.

Due: Sept 21

Week 5: Web Applications & Frameworks

Sept 21 | Location: Zoom Meeting

Discussion | 20 mins

  • Assignments 3 Share / Questions
    • Project Management Tips
      • Use a .gitignore file or (better way) create a global .gitignore file that ignores .DS_Store. This is a junk file on macOS that creeps into Github projects all the time.
      • Rename files to something short and simple when possible.
      • Replace spaces in filenames with "-" or "_" characters.
      • When sharing the Github repo you only need to share the URL from the browser. Omit the .git extension. For example, https://github.com/rjduran/cm1-web-dev.
      • File paths - Be sure to only reference files in folders within your project folder. For example, do this /img/image1.jpg and not this /Users/rjduran/Desktop/image.jpg.
      • Relative vs Absolute file paths (HTML File Paths)
  • Agenda
    • Javascript Workshop
    • Frameworks & Libraries
    • Break
    • Front-End Workshop
    • Web Applications

Javascript Workshop | In Class, 20 mins

Javascript is an enormous topic and we will only begin to scratch the surface of it today. I highly recommend working through some of the resources below and looking at the resources under the Learning JS section. There are several great books and tutorial series that can give you a foundational understanding of the language and it's many uses. If you were to learn one programming language, I would recommend this one.

Goals:

  1. Understand how to add JS to a HTML document (internal & external)
  2. Get familiar with how JS can modify the contents of a page
  3. Get familiar the Chrome Dev Tools console

Instructions:

  1. Create a new file called script.js in your "hello-world" folder. We will come back to this at a later step.

  2. Add the <script>...</script> tag in your document. Where should you place it? Discuss.

    • Inside <head> = load before body contents
    • Just before </body> tag = load after body contents

  3. Call the alert function and give it a string of text. What happens when you reload the page?

    alert("hello spacecat!");

  4. Decalare a variable and give it the same string of text as a value. Now use the variable in the alert. What happens?

    var message = "hello spacecat!"; alert(message);

  5. Comment out the alert with a single line comment.

  6. Now, print the value to the console in the browser using the console.log() function. What happens?
  7. Copy and paste contents of <script> tag into the script.js file and comment out everything inside of <script>. What happens?

Resources

DOM (Document Object Model)

The DOM is a standard object model and programming interface created by the browser when a webpage is loaded. It is essentially your HTML page but in a different format now accessible through a browser based programming interface and language (Javascript). In general, JS can manipulate (get, change, add, delete) any part of the DOM (ie. any part of a page or document).

Frameworks & Libraries

  • What is a framework?
  • What is a Library?

Library

A library is a collection of code containing objects, functions, and methods that you can use in an application or project. It can be written in CSS, Javascript, or some combination of both.

Some common libraries: Google Fonts, Animate.css, Draggable.js, masonry.js, p5.js, D3.js, and Three.js.

Framework

A framework can be everything you use in application development. It can consist of both front-end and back-end toolsets. It can be a library, a collection of libraries, a collection of scripts, or any piece software you need to create an application. It's best to think about a framework as something that is mostly ready to use out of the box, but still requires an understanding of the terminal, version control, and the web languages: HTML, CSS, and JS.

Some common frameworks: Bootstrap, W3.CSS, Materialize, Shoelace, React, Express, and Electron Framework.

Evaluating a Library or Framework

There are several questions you might ask yourself when choosing to use an existing library or framework. You typically start by looking at the documentation to compare similar features and components and to see if it does something you would like to incorporate into a project.

  • What does it do?
  • What's the benefit of using it?
  • How do you use it?
  • Pros and cons?
  • Are there examples to follow?
  • Is there a large community?
  • Where can I get help?

Resources

BREAK - Take 10 min

Front-End Workshop | In Class, 45 mins

In this workshop we will walk through building a filterable student list from scratch. It will use Bootstrap as the front-end framework and vanilla javascript to filter.

References: Figma Design, Github Repo

Goals:

  1. Learn how to incorporate a front-end library or framework into a project.
  2. Understand how to structure a document based on the framework used.
  3. Learn how to utilize Javascript to filter a list of items. In this case student names.

Instructions:

  1. Create a new project folder called "student-list".
  2. Create an index.html file inside the folder. This will be your primary document.
  3. Open Terminal and start a live-server instance inside your project folder.
  4. Naviagate to the Bootstrap documentation and look for the Starter Template code. Copy and paste it into your index.html file. You should see an empty page that says Hello, World! in your browser automatically as long as live-server is running.
  5. Add a div element with the class="container" inside your body element. All your content will go in here.
  6. Below the container div and just ablve the closing body tag, add a <script>... </script> element. This is where we will put all our Javascript code.
  7. Refer to the Figma Design to see what the page should look like.
    • What elements will you need to make your document reflect the design in Figma?
    • Tip: Look at the components section of the Bootstrap documentation.
  8. Once you have the general structure of the page, we can proceed to make it interactive when typing into the search field by using javascript.
  9. Proceed to implement a filter algorithm as described in class.

Questions / Next Steps

  1. How do I add more data to the page?
  2. How do I update the data?
  3. Where is the data stored and how do I access it?

Resources

Web Applications

What makes a web application? The modern term "web application" applies to a variety of systems or stacks. Typically, these systems communicate with one or more servers for access to system resources like memory, databases, and cpu or gpu. ie. speed, power, and connectivity. It may have more than one type of client interface. ie. Mobile, desktop, API, or another application.

What are some common types of websites or web applications?

  • Static Website - Basic websites, blogs, etc
  • Native or Mobile App
  • Progressive Web App (PWA) - A responsive mobile website that mimics the behavior of native or mobile apps.
  • Single Page App (SPA) - An application that is dynamic and interactive without reloading the entire page.

Resources

Assignment 4: Digital Legos

Choose one or more libraries or frameworks and make something with it.

Thoughts on how to accomplish this:

  • If you have project in mind for your final project or another project, begin to identify what tools you might use to build that project and attempt to work on a piece of it.
    • What functionalites does the project need? (Maybe there's a library for it)
    • How do you see the project working from the user experience?
    • What design elements can you identify and how might they be coded?
  • Investigate libraries that seem interesting to you. Assess their capabilities and how you can apply it to a project.
  • Begin by looking over examples found in the documentation.
  • Look for "getting started" documentation about a library or framework. Work through it and see where it takes you. Google is your best friend.
  • Try to be as specific as possible when invesitgating a library or framework. What is your motivation for learning it and what do you want to accomplish with it? Identify some specific uses of it and focus.
  • Start simple. Dont try to understand it all. If you copy and paste code from somewhere, copy one line at a time and learn what it does. Then add more code and repeat. It's easier to start simply and build up complex functionlaity than to work the other way.
  • Use comments (in JS, HTML, or CSS) to write notes to yourself.
  • Work together! Share code, ideas, and libraries you find with eachother.
  • Have fun with it!

Make a repository on Github for your project and commit all project files to it. I should be able to clone your project repo and run it in a localhost on my machine to see the same result without changing filenames or folders. Note: Your repo should always include a README.md file with instructions about it's use and what it does.

Deliverable:

  1. A short 2-4 min video screen capture demonstrating your project running in a local development environment. Be sure to briefly introduce yourself and your project, provide an overview of what you made and how it works. Embed the video into your blog post.
  2. Include a link to your Github repo for the code written.

  3. A brief writeup on your blog about your learning experience.

    • What hurdles did you encounter and how did you overcome them?
    • What worked and what didn't?
    • What new tools did you try?
    • How would you explain what you've done to someone that doesn't know anything about web development and the tools used?

Submit a link to your post on Slack #cmstudio by EOD.

Due: Sept 28

Week 6: Data, API's & Connectivity

Sept 28 | Location: Zoom Meeting

Discussion | 20 mins

  • Assignment 4 Share
  • Questions on projects, tools, languages - HTML, CSS, JS, etc
  • Working together
  • Agenda
    • APIs - What and Why
    • API Mashup Session - 30 mins
    • Break - 10 mins
    • Data - How
    • API Workshop - 45 mins

API's

  • What is an API?
  • What is the purpose of an API?
  • How do you use them?
  • How do you make your own?

Most importantly, as a designer of the future, what does one need to know to work with APIs?

The best place to start is by looking at what kinds of APIs exist and how they have been used to build products.

Popular APIs

API Mashups

What's a mashup? It's an application that utilizes one or more APIs in combination to provide a solution to a problem or ask new questions.

API Based Platforms

These are platforms that utilize APIs in their products. The use of one or more APIs is core to their busoiness model.

Where to Discover APIs

API Mashup Session | Breakout Rooms, 30 mins

In teams, brainstorm a concept or solution that makes use of 2 APIs. Spend some time researching the APIs of interest and brainstorming how they could be used to solve a problem or simply have some fun. Make a list of questions concerning that arise in the process.

Place all your ideas into the shared API Mashup board board in Milanote. Your will need to signup for an account to work in this shared board.

Some things to think about when brainstorming and researching APIs:

At a high level:

  • What kind of possibilities emerge when you combine chosen APIs?
  • Whats unique to each API? What features does it have?
  • How do the APIs chosen complement eachother?

At a lower level:

  • What kind of data is available?
  • What kind of access is required to make the API work?
  • What does your product or website need to ask of a user? What kind of permission? And what does that mean for how the API is used?

When time is up we will come back together and discuss then take a break.

BREAK - Take 10 min

Data

  • What is Data?
  • How is it represented?
    • JSON, CSV, TXT
  • How do I make a database?
    • What is a database?
  • Web applications read/write into databases on servers using data formatted in JSON.
  • Web applications communicate using JSON.

Overviews

Building Databases / APIs

I have an idea for a database or API. How do I begin put something together? What tools can I use?

Additional Resources

REST, CRUD HTTP/HTTPS, Ports, URL

Javascript

API Workshop | In class, 45 mins

Example 1: Reading data from a Google sheet

Ways to read data from a Google Sheet as your database.

Example 2: Requesting data from an API

This will use the student list database I setup in Strapi. We will look at how it is setup and how it is pulling data from the database into the page. We will also look at how to make a localhost accessible to anyone on the web using ngrok and localhost.run.

The code is available under week6/student-list-strapi in the class repo.

Tools we will look at:

  • JSON Formatter makes it easy to see JSON data in the browser.
  • Postman - Allows you to send requests to an API

How to share a database or localhost over the Internet:

Method 1: ngrok - Requires node.js. Sessions limited to 8 hrs.

To use: In Terminal, type ngrok <protocol> <port>. For example, to share a localhost running on port 8080, enter the following. Note this process uses two Terminal windows. Once the connection is established, you will get a public URL to use.

    ngrok http 8080

Method 2: localhost.run - No install required. SSH Keys required.

To use: In Terminal, type ssh -R 80:localhost:8080 ssh.localhost.run. For example, to share a localhost running on port 8080, enter the following. Note this process uses two Terminal windows. Once the connection is established, you will get a public URL to use.

    ssh -R 80:localhost:8080 ssh.localhost.run

Assignment 5: Connect The Dots

This week I would like you to explore the world of APIs in two ways:

  1. Design a mashup concept that attempts to solve a problem.
  2. Choose an API to get familiar with and attempt to make something using it.

Thoughts on how to accomplish this:

  • Continue down the path you came up with during class or develop a new approach.
  • Spend some time researching APIs that are in line with products or services you are familiar with and use often.
  • Research mashups that use an API you are exploring. What was done? Can it be improved?
  • What are some of your hobbies and interests? Is there an API for it? If not, what if there was? Whats possible then?
  • Write down the names of a bunch of APIs you research and put them into a hat. Stir it around and pull out two. Repeat this process for a time and write down all the combinations. What's interesting?
  • Look for recent tutorials that make use of an API you are curious about. Attempt to recreate the workflow.
  • Start with simple GET requests and increase the complexity of your queries as you get more familiar with the documentation and API.
  • Work through the class examples and develop a workflow that enables you to work with data in a new way. For example, using Google Forms (for user data input) to generate a database (Google Sheet), which you then can pull data from via API.
  • Experiment with an API and ask "what if?" questions in the process.
  • WORK TOGETHER! Make time to work together outside of class.
  • Have fun with it!

Make a repository on Github for your project and commit all project files to it. I should be able to clone your project repo and run it in a localhost on my machine to see the same result without changing filenames or folders. Note: Your repo should always include a README.md file with instructions about it's use and what it does.

Deliverable:

  1. A blog post describing your ideas and sharing any visuals created or referenced to illustrate the concept. You can record a short video presentation with slides if that helps to share the concept. Embed your video into your blog post.
  2. Include a link to your Github repo for any code written.

Submit a link to your post on Slack #cmstudio by EOD.

Due: Oct 5

Phase 3: Digital Design Foundations

Source: 7 Days, 700 Pens: Parametric Design for Customized Conference Swag by Formlabs

In this phase we will look at tools and workflows that support 2D and 3D digital design.

We will approach each topic with simplicity in mind and focus on understanding fundamental concepts. To build advanced skills with the tools we discuss you will need to dedicate time outside of class for further experimentation. We will approach topics in a hands-on workshop format so be prepared to dive in.

The goal of this phase is to learn how to utilize digital design tools to create and represent concepts.

Week 7: Intro to CAD

Oct 5 | Location: Zoom Meeting

Discussion | 30 mins

  • Assignment 5 Share
  • Questions
  • Agenda
    • CAD Overview
    • Intro to Tinkercad
    • Intro to Rhino
    • Break - 10 mins
    • Intro to Fusion 360

Computer-Aided Design (CAD)

CAD vs CAM - What's the difference?
(We're working towards CAM in Phase 4: Becoming Physical)

CAD Tools

File Formats

  • 2D
    • Raster - JPG, PNG, TIFF
    • Vector - AI, EPS, DXF, SVG, PDF
  • 3D - OBJ, STL, STEP, IGES, GLTF

3D Meshes

A polygon mesh is a collection of vertices, edges and faces that defines the shape of a polyhedral object in 3D computer graphics and solid modeling. The faces usually consist of triangles (triangle mesh), quadrilaterals (quads), or other simple convex polygons (n-gons), since this simplifies rendering, but may also be more generally composed of concave polygons, or even polygons with holes.
Source: Wikipedia

Besides designing a 3D model directly in CAD, what other ways can you get a 3D model or mesh?

Utilities

These tools help you easily view 3d models (stl / meshes).

Typical Digital Design to Fabrication Workflow

Step 1: Design with one or more CAD tools for the desired production method(s). For instance, laser cutting requires 2D vector or raster artwork and 3d printing requires a 3D model.

Step 2: Fabricate by hand or machine or some combination of both. Return to step 1 and repeat as needed.

  • Hand: - cut, carve, bend, sand, etc
  • Manual Machines - Mill, Lathe, Saw, Drill, etc
  • Computer Numerically Controlled (CNC) Machines - CNC Mill, CNC Router, 3D Printer, Laser Cutter, Plasma Cutter, Water Jet Cutter, etc

In general, most workflows consist of a series of steps where specific tools and knowledge are put into action to complete the step and move to the next step in the process.

In terms of digital to physical workflows, we're always dealing with data in some form / file format. Its good practice to get familiar with input and output formats for any CAD tool you work with because you then know what the tool is capable of and how other tools can interface with it. Most CAD environments can work with a variety of 3D file formats such as STL, OBJ, STEP, and many others.

Workshops

We will survey a few different CAD tools with the goal of understanding some of the similarities and differences in workflow. There is no single CAD tool that does anything and everything. The most power workflow I can suggest comes from working with a variety of 2D/3D tools to realize an idea. As with most tools we encounter as designers, each one has a learning curve with some aspects being steeper than others, but with practice, they will become easier to use. I highly recommend spending the time this week exploring the learning resources available below.

Resources

Rhino Resources

Fusion Resources

Assignment 6: From Sketch to Model

This week I would like you to explore CAD tools by creating a 3D model from a sketch.

Thoughts on how to accomplish this:

  • Spend time sketching out ideas on paper or making something physically with paper, cardboard, or other materials. Attempt to translate the shapes you put together into 3d in CAD.
  • Think in terms of problems (as design opportunies) and solutions. Where do you see a need for making something using a CAD tool?
  • Spend time looking through the resources listed above. There are several tutorials that can be worked through.
  • Work through Linkedin Learning lessons and focus on applying a few tools or techniques to create your model.
  • Inspect models you find and attempt to recreate the model in your CAD tool of choice.
  • If you use a tutorial to guide the design process, make it a point to deviate from the instructions to make the design your own.
  • Simplify your design to make use of basic shapes you know how to manipulate. Then increase the fidelity.
  • Measure something real and physical to get the dimensions. Attempt to draw something that matches the specifications.
  • Read the documentation or manual for the tool.
  • WORK TOGETHER! Make time to work together outside of class and share modeling tips.
  • Have fun with it!

Deliverable:

  1. A blog post describing your design process from sketch to 3D model.

    • What did you design and why?
    • What challenges did you face while making your model?
    • What resources did you use?

  2. Export a mesh (STL File) of your model and upload it to Sketchfab (You will need to make an account). Once uploaded to Sketchfab, embed your uploaded model into your blog post. Here's a tutorial about how to do this. This is the same as embedding a Youtube video into a blog post, but with a 3D viewer window containing your model, which you can manipulate and even visualize in VR! Cool eh!? Check out these examples from past students.

  3. Be sure to include any screenshots and visuals created or referenced to illustrate your ideas. You can record a short video presentation or process walkthrough if that helps to share your project. Embed your video into your blog post.

Submit a link to your post on Slack #cmstudio by EOD.

Due: Oct 12

Week 8: Parametric Design

Oct 12 | Location: Zoom Meeting

  • Assignment 6 Share
    • It's great to see the variety of approaches to this project.
    • Leveraging available resources is key for working quickly on a concept while ramping up on a new skillset or toolset.
    • Export FBX files to retain basic color information when importing into Sketchfab. Textures can not be exported in any format.
  • Agenda
    • Parametric Modeling vs Direct Modeling
    • Examples of Parametric Design
    • Break
    • Fusion 360 Work Session
    • Rhino & Intro to Grasshopper Work Session? - How many people experimented with Rhino?

Parametric Modeling vs Direct Modeling

Parametric Modeling

Parametric Modeling (aka Parametric Design) is a process based on algorithmic thinking that enables the expression of parameters and rules / constraints that, together, define, encode and clarify the relationship between design intent and design response. This approach follows a step by step process and may require careful planning to design a model.

Parametric modeling is extremely useful for products that are driven by dimensions—think standard office fare like desks and shelving or tools that can vary in size. With the parametric approach, engineers can quickly and easily create different configurations of their designs.

Direct Modeling

Direct modeling empowers you to define and capture geometry quickly, without spending time worrying about features, constraints, and original design intent. It is often compared to working with modeling clay. Simply push and pull the geometry until you arrive at just the shape you want.

In direct modeling, designers can push and pull on their model to change it. One benefit of this capability is the ease with which designs can be altered, enabling rapid iteration and prototyping. For that reason, direct modeling has found a niche in the world of industrial design, where fluid curves and bold aesthetics play a big role.

So...what is Rhino and Fusion 360?

Fusion 360

Rhino

  • Direct Modeling
  • History-free, unless it's enabled for specific operations. See History.
  • Has node-based visual editor Grasshopper (aka Explicit-history) built-in. Through Grasshopper, parametric design is possible, taking form as a "definition" which consists of the design history and thereby the object.

Others

In the past few years, many other types of CAD-like hybrid environments have come to term such as Onshape, a CAD based prodcut design platform.

Similarly, node-based editors or plugins for CAD environments offer designers open-source and accessible alternatives to Grasshopper and Dynamo. Tools such as Sverchok and Sorcar for Blender are paving the way.

References:

Examples

What types of objects can be considered "parametric"?

Just about anything really. Some examples: Cups, Vases, Pitchers, Bottles, Bells, Bowls, Clothing, Furniture, Lighting, Cars, Personal Items, Buildings!... what else?

Fusion 360 Work Session

Open your projects for this week and lets look at issues you ran into. What gave you trouble?

Assignment 7: Mass Customization

Design a parametric model and produce 3 variations that meet the needs of 3 different users.

For example, 3 different chairs made to fit 3 sizes of human bodies - small, medium, large. The chairs all posses the same characteristics except the size.

Thoughts on how to accomplish this:

  • Spend time sketching out ideas on paper or making something physically with paper, cardboard, or other materials. Attempt to translate the shapes you put together into 3D in CAD.
  • Iterate on your previous project. How can you make the model fully parametric? What parts of your model need to be parametric?
  • Hint: If you are using Fusion 360, you will likely want to make use of Constraints and Dimensions in your sketches and entering values into the Parameters Window. If you are not using Fusion 360, how can you make your model parametric? What's your approach?
  • Measure something real and physical to get the dimensions. Attempt to draw something that matches the specifications.
  • WORK TOGETHER! Make time to work together outside of class and share modeling tips.
  • Have fun with it!

Deliverable:

  1. A blog post describing your design process from sketch to 3D model.

    • What did you design and why?
    • What makes your design parametric? ie. what are the parameters of your design?
    • What challenges did you face while making your model?
    • What resources did you use?

  2. Export a 3D model file (STL or FBX) and upload it to Sketchfab.

  3. Be sure to include any screenshots and visuals created or referenced to illustrate your ideas. You can record a short video presentation or process walkthrough if that helps to share your project. Embed your video into your blog post.

Submit a link to your post on Slack #cmstudio by EOD.

Due: Oct 19

Week 9: Visualizing Products

Oct 19 | Location: Zoom Meeting

  • Upcoming
    • Phase 4: Next week we will start looking at digital fabrication tools and workflows.
    • Week 12 (Nov 9) - Final project Proposal Due
  • Assignment 7 Share
    • What did you make and how did you make it parametric?
    • Questions
  • Agenda
    • Representing Concepts
    • Questions Concerning the Visualization Process
    • Examples
    • General Workflow
    • Workshop: Adobe Dimension

Representing Concepts

Visualizing a product be it large or small, digital or physical, is an involved process that requires constant iteration and feedback from stakeholders. For our purposes we will begin by exploring some questions that arise in the process of designing products.

Here are a few types I have encountered. I deal with several of these forms of representation everyday. What other forms of visualization can you name?

  • Digital Designs
  • Digital Mockups
  • Digital Wireframes
  • Line Drawings
  • Physical Prototypes
  • Animation
  • Schematics

Questions Concerning the Visualization Process

What digital and/or physical representations need to be used to effectively communicate design intent?

  • What is your idea? How do you imagine it to be?
  • What kind of materials does your design or idea require?
  • Is it physical or digital or both?
  • Who is your audience?
    • Who will be viewing the images and making a decision through it?
  • What meaning do I wish to convey through an image or animation?
  • How realistic does my image need to be? Do I need a render or a photo?
  • How much time do I have to make a render?
  • What kind of fidelity is required?
  • Does it move or require showing functionality through animation or diagrams?

Examples

We will take a look at some recent examples of projects using different approaches to visualize a concepts.

General Workflow

In this class we are interested in assembling workflows that produce a result. Sometimes the workflow you use to accomplish a task is possible within a single program or it's constructed through a series of operations provided by several programs. Below is a general workflow for visualizing a product.

  1. Create design files in 2D or 3D. These are your design assets.
  2. Export models in a 3D format that allow for applying color, materials, textures to individual components (ie. FBX, STEP, OBJ, STL).
  3. Create 3D scene with assets, environment, and lighting in render tool of choice. In some cases, the CAD environment provides basic rendering tools.
  4. Make test renders or preview results with lower quality settings. High quality renders take longer and use more resources. Expect to wait.
  5. Repeat the process to produce quality images that can be further processed or composited.

BREAK

Workshop: Adobe Dimension | In Class, 45 mins

In this workshop we will walk through designing a scene with objects in it. We will then explore environment, lighting, materials, and rendering.

Goals:

  1. Get familar with the Adobe Dimension interface and scenes
  2. Get familiar with environment, camera, models, and materials
  3. Get familiar with basic render settings

Resources

Adobe Dimension

Fusion 360

Assignment 8: Product Visualization

Using Adobe Dimension, generate 3 renders of a product or design concept you created in CAD.

What does this mean? This could be 3 unique instances of a single design concept (parametric design) or it could be 3 different visual representations of a single design instance, paying special attention to exploring different environments, lighting configurations, and materials to create different moods.

Project Details:

The images you produce will be shared on Instagram @criticalmakingstudio. They will likely be reshared on the official CMCI Studio (@cmci.studio) account as well.

  • Canvas Sizes - Choose story or square formats. Story size can be cropped to square.
    • Instagram Story - 1080 x 1920 px
    • Instagram Square - 1080 x 1080 px
  • Project Title
    • Give your project a title and short description. This will be included in each post.
  • Your Instagram username

Thoughts on how to accomplish this:

  • Spend some time working with Adobe Dimension to get familiar with the interface and workflow. Look through some of the Adobe tutorials to start.
  • Export different model formats form your CAD tool. Start with FBX and STL files. Then import your models into Dimension. Find a workflow that agrees with your models.
  • Read the User Guide. Read about Supported file types and Materials.
  • Note: Depending on your computer hardware, producing renders can take awhile. Plan ahead to make sure you have time to produce the best quality renders you can.
  • WORK TOGETHER! Make time to work together outside of class and share rendering tips.
  • Have fun with it!

Deliverable:

  1. A blog post describing your process beginning with exporting from CAD tool to setting up your renders to producing final images.

    • What kind of workflow did you come up with?
    • What worked and what didn't?
    • What challenges did you face?
    • What resources did you use?

  2. Produce 3 high quality images of product concepts you designed. Include these images in your blog post with a brief description for each image. Place your images into the Milanote board linked below as well.

  3. You can record a short video presentation or process walkthrough if that helps to share your project. Embed your video into your blog post.

Submit a link to your post on Slack #cmstudio by EOD.

Due: Oct 26

Phase 4: Becoming Physical

Source: Laser Cut Parametric Triangles by RJ Duran

In this phase we will look at tools and workflows used in digital fabrication.

We will approach each topic with simplicity in mind and focus on understanding fundamental concepts. To build advanced skills with the tools we discuss you will need to dedicate time outside of class for further experimentation. We will approach topics in a hands-on workshop format so be prepared to dive in.

The goal of this phase is to learn how to utilize digital fabrication tools to create physical objects from digital designs.

Week 10: No Class

Oct 26

Class canceled due to weather.

Week 11: Intro to Digital Fabrication

Nov 2 | Location: Zoom Meeting

  • Updates
  • Assignment 8 Share
  • Agenda
    • Overview
    • Finding Inspiration
    • Outsourcing Fabrication
    • BREAK
    • Digital Fabrication Worklfows
      • 3D Printing
      • Laser Cutting
      • Vinyl Cutting

Digital Fabrication

Digital fabrication is a type of manufacturing process where the machine used is controlled by a computer. The most common forms of digital fabrication are CNC Machining, Laser Cutting, and 3D Printing. (Source: Open Desk)

CAD & CAM

Where to Begin

In general, every digital fabrication process works in a similar way:

A digital file is created (ie. toolpath) to deliver instructions to a machine (ie. fabrication method) engaging with a piece of material (ie. stock) to produce a specific result.

When encountering these tools, I find most people begin in one of the following groups with the following question:

  1. Idea - I have an idea. Which digitial fabrication tool(s) enable me to make it?
  2. Process - I am interested in a digital fabrication tool or process. What can I make?

Finding Inspiration

Projects

Outsourcing Fabrication

  • 3D Hubs - CNC Machining, 3D Printing, Injection Molding
  • Shapeways - 3D Printing
  • Fictiv - CNC Machining, 3D Printing

BREAK

Workshop: Digital Fabrication Workflows

We will spend the rest of the time getting familiar with the software workflows for 3D printing, laser cutting, and vinyl cutting.

Remember: To get something 3D printed or laser cut at the Idea Forge, you need to follow the instructions for 3D Printing & Laser Cutting Fabrication Requests.

3D Printing with Ultimaker 3

  1. Save print ready STL from CAD
  2. Load STL file into Cura
  3. Choose PLA material for Extruder 1 and PVA for Extruder 2 (If using support material)
  4. Choose a print profile (aka Layer Height: Start with Fast or Normal options)
  5. Choose an infill (Density)
  6. Save GCODE file and copy to USB drive to insert into Ultimaker 3

Things to consider:

  • Material - PLA and ABS are the most common materials but there are many others out there that work with FDM machines like the Ultimaker. If you are outsourcing a print job, you will need to investigate the material options provided by the print service. Outsourcing has the advantage of printing with a variety of machines and materials.
  • Scale - How large of a print do you need? Can your object be printed in parts and assembled?
  • Printability - Does your model need to be printed? Is this the best method? Is there another method better suited for the task?
  • Slicing tools like Cura convert a 3D mesh (STL) into GCODE to run the printer. This is not to be confused with the Autodesk tool - Slicer for Fusion 360. That is a tool for converting 3D models into 2D pieces that can be cut on a laser cutter with 2D sheet material to assemble into a 3D model.

Additional resources for printing can be found under Design for 3D Printing.

Laser Cutting

  1. Make a 2D vector graphic design file in Illustrator
  2. Prepare layout in file. Match the size of material you wish to cut and the machine you wish to use.
  3. Submit laser cutting fabrication request at Idea Forge.

Vinyl Cutting

  1. Make a 2D vector graphic design file in Illustrator

    • Define your Artboard size to be the dimensions available within the left and right margins of the rollers. The width will be shown on the vinyl cutter display once you load material.

  2. Configure print settings in Window > Extensions > Roland CutStudio

    • Select GX-24

  3. Load material into machine

  4. Outline text/shapes
  5. Print/Cut

Assignment 9: Final Project Proposal

Submit a Final Project Proposal by EOD.

Due: Nov 9

Phase 5: Final Project

Week 12: Final Project

Nov 9 | Location: Zoom Meeting

Meeting Signup: https://calendly.com/rjduran

Week 13: Final Project

Nov 16 | Location: Zoom Meeting

Meeting Signup: https://calendly.com/rjduran

Week 14: Final Project

Nov 23 | Location: Zoom Meeting

Meeting Signup: https://calendly.com/rjduran

Week 15: Final Project

Nov 30 | Location: Zoom Meeting

Meeting Signup: https://calendly.com/rjduran

Week 16: Final Project Presentations

Dec 7 | Location: Zoom Meeting

Final Project Documentation
